25% zirconia fused alumina F80 F100 F120

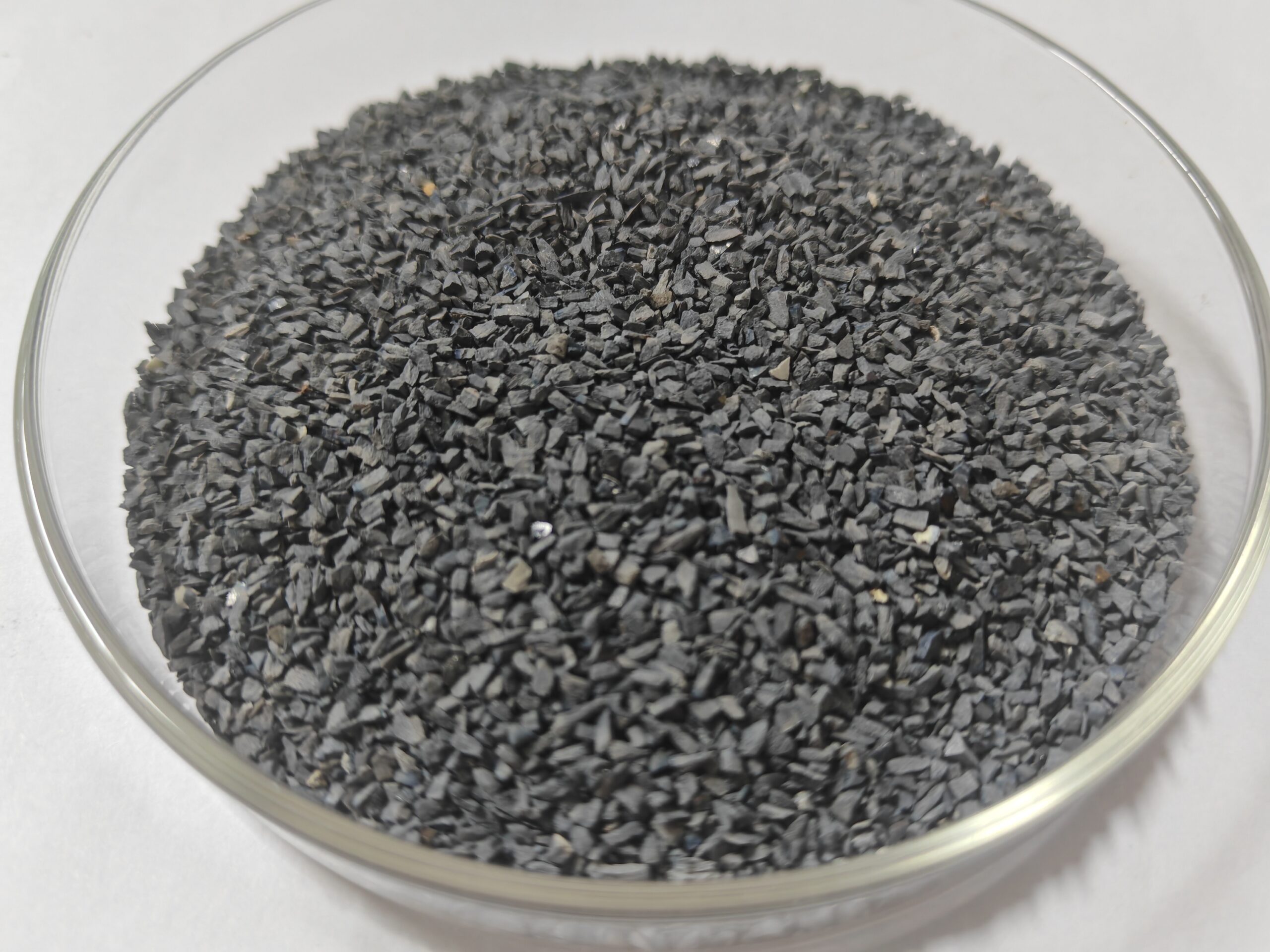

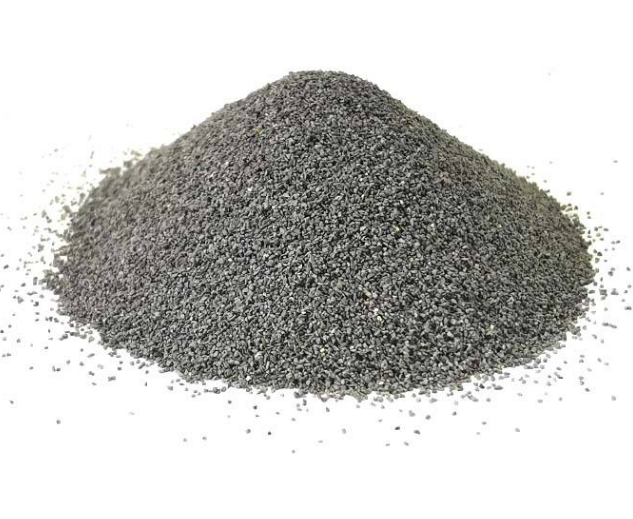

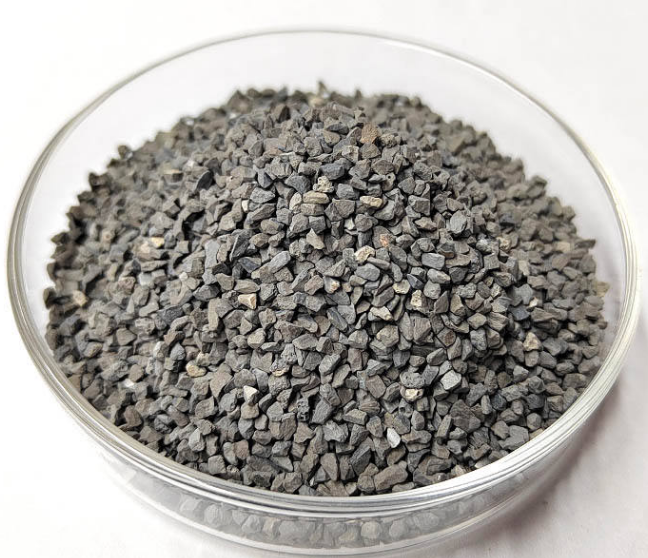

This 25% zirconia fused alumina (ZA25) grit is available in FEPA grades F80, F100 and F120. It is manufactured by electric fusion of alumina and zirconia oxide, featuring a unique eutectic microstructure that brings excellent self-sharpening property and high toughness. Compared with regular brown fused alumina, it offers longer service life and stable grinding efficiency.
With tightly controlled particle size distribution and low impurity, this ZA25 grit is suitable for heavy-duty grinding, surface conditioning and cutting on stainless steel, carbon steel and alloy steel. It is widely used for resin grinding wheels, flap discs and abrasive belts.
We conduct strict screening and quality testing for each batch. COA can be provided upon request. Custom packaging is supported to match your abrasive production needs. It is a reliable and cost-effective abrasive for metal fabrication workshops.
TYPICAL CHEMICAL ANALISIS [%]:
| Items | Al2O3 | ZrO2 | TiO2 | Fe2O3 | SiO2 |
| ZA25 | 68-72 | 24-30 | ≤1.5 | ≤0.5 | ≤1.0 |
| ZA40 | 55-57 | 35-44 | ≤1.5 | ≤0.5 | ≤1.0 |
PHYSICAL PROPERTIES
| Crystal Form | Monoclinic,tetragonal system |
| Reaction with acid and alkali | no |
| Reaction with carbon | Forming carbide since 1650C |
| Color | Grey |
| True Density | 4.20g/cm3 |
| Bulk Density | 2.18g/cm3 |
| Moh’s hardness | 9.0 |
| Knoop hardness | 1450-2000kg/cm2 |
| Melting point | 1900C |
| Maximum service temperature | 1700C |
| Specific heat capacity(cal/g.C) | 0.2205(50-500C) |
| Heat conductivity | 0.2718 cal/cm2.sec.C |
| Linear expansivity(X10-6) | 6.82(100-700C) |
MOSTLY USED AS :
- Making zircon fused alumina brick and building materials
- Used for making bonded abrasives products,and processof grinding,sandblasting,surface treatment of metal products and other materials.
- With good melt erosion resistance,ithas good grinding effect on steel,iron casting,heat resistant steel and other alloy materials.
- Itcan be made for heavy duty ZFAgrinding wheel,snagging,cutting disc,Fiber disc,grinding rails,high speed abrasive belts etc
- Used for making coated abrasives products,
- Used for making lapping paste,polishing wax,emery cloth,sandpaper etc
- Fused Alumina-Zirconia is primarily used for steel conditioning wheels, snagging wheels, large diameter cut-offs and other grinding applications that require high speed and pressure. It’s also is recommended for refractories that require a high resistance to environmental corrosion and a low coefficient of thermal expansion. Applications include slide gates, glass tank refractories, and other applications requiring resistance to molten slags.
